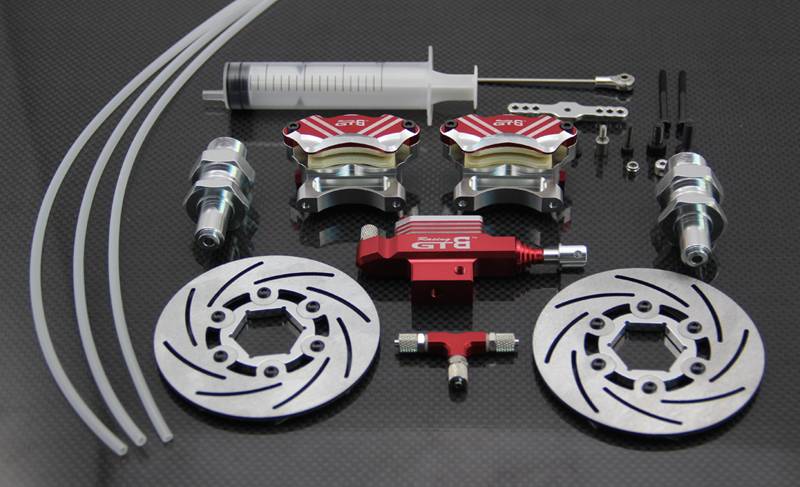

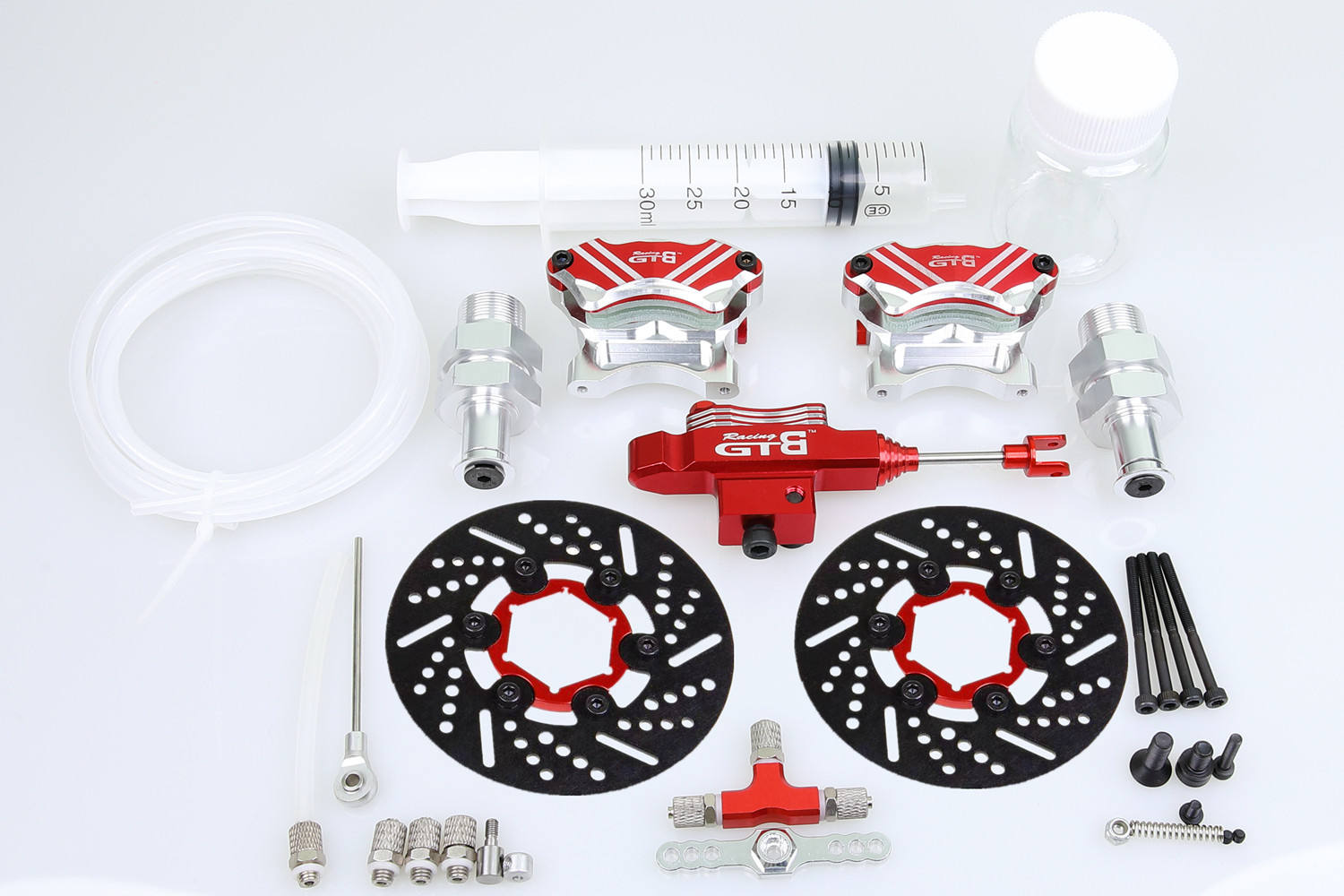

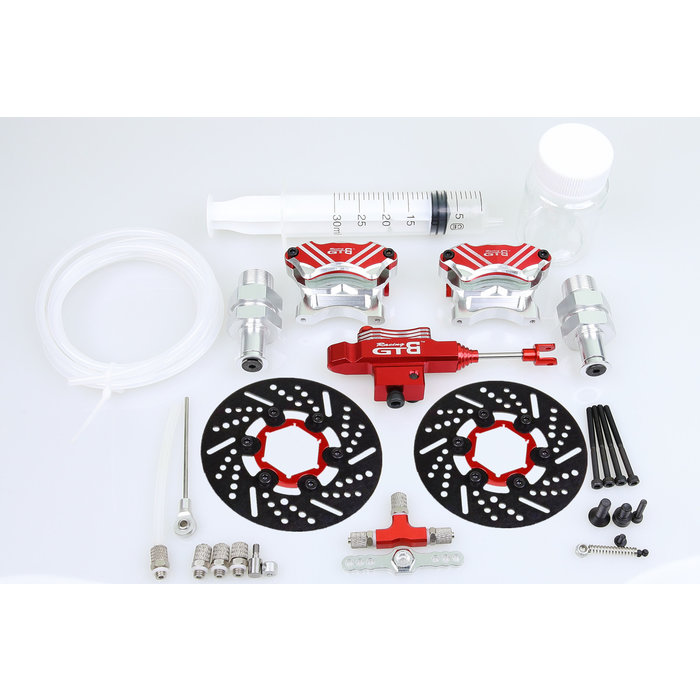

GTBRacingGTB Front hydraulic brake V2 with 4 piston (including 2 pcs front extenders)

GTB New CNC front wheel brake hydraulic oil / hydraulic brakes For HPI BAJA 5B/5T/5SC

• Innovative design
• Nice
• Easy to use
• CNC precision production
This section front wheel hydraulic brakes, dual piston design, XL porous disc brake cooling, flat precision 0.005mm. Highly efficient braking.

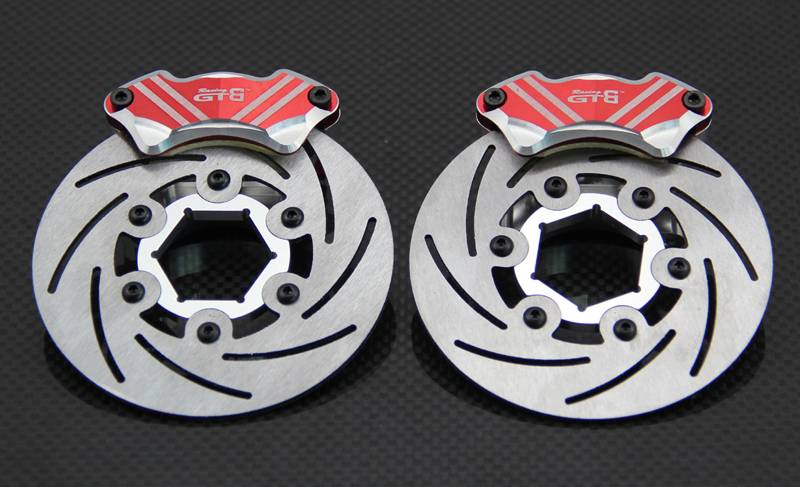

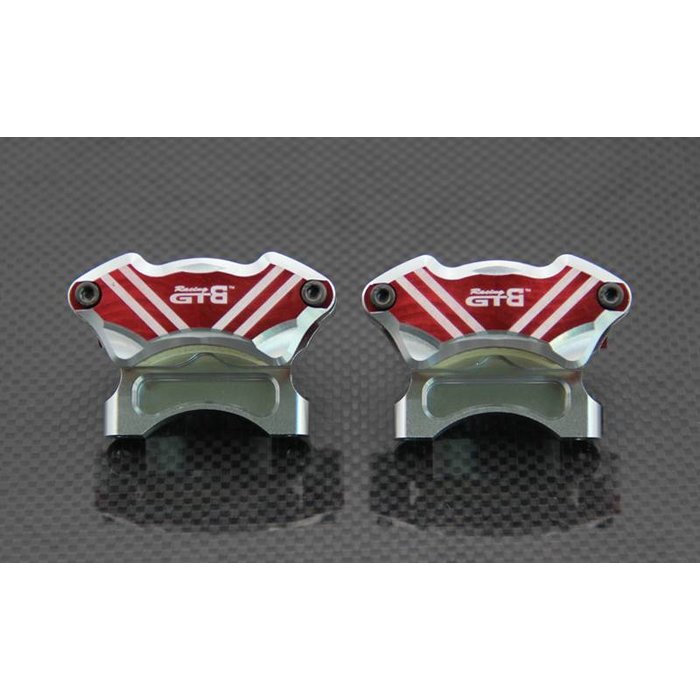

1: Calipers combined caliper cover three-dimensional design, so the whole is more dynamic fashion.

2: Caliper piston seal with double seals by a Y-shaped O-ring seals and a combination hydraulically sealed to prevent excessive pressure when braking and leak, causing brake failure.

3: Optional brake pads use high temperature, wear-resistant epoxy fiber composite material made of CNC, parallelism 0.05mm, effective control of the gap.

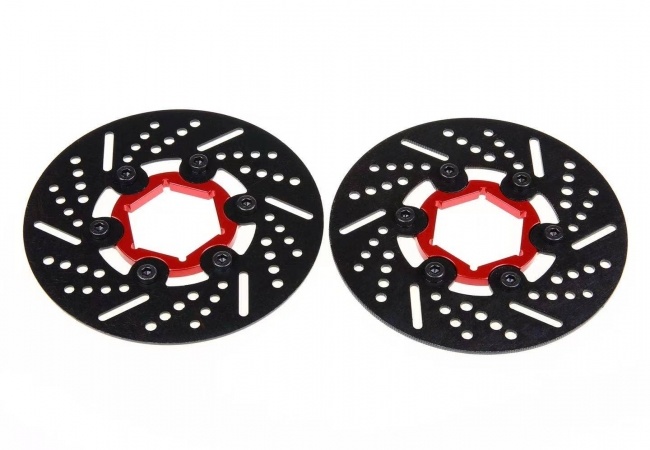

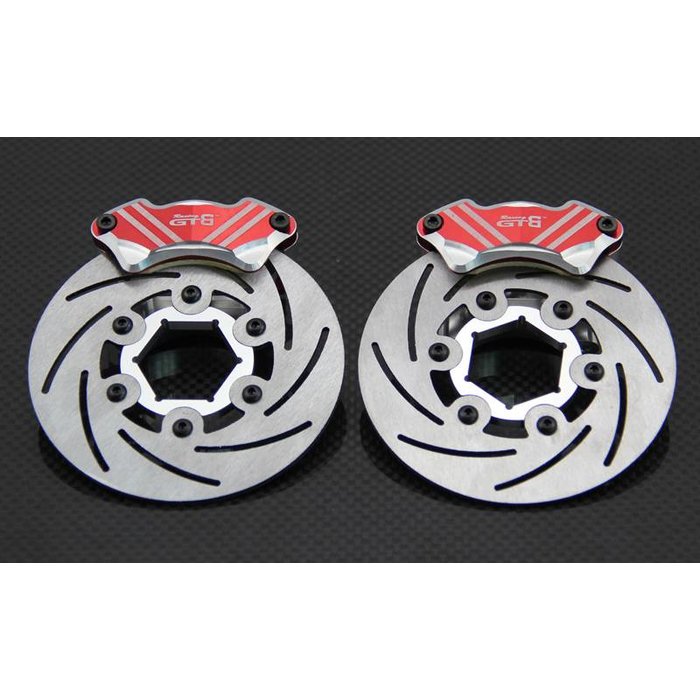

4: The brake discs in the past we used carbon fiber production, due to the uneven surface error is large, we use the high-carbon steel flat grinding, control parallelism within 0.005mm, prompting a smooth combination of friction between the brake pads and brake system disc move to increase the braking    force and arc-shaped slot design approach, increasing friction and ventilation, reduce friction and heat deformation.

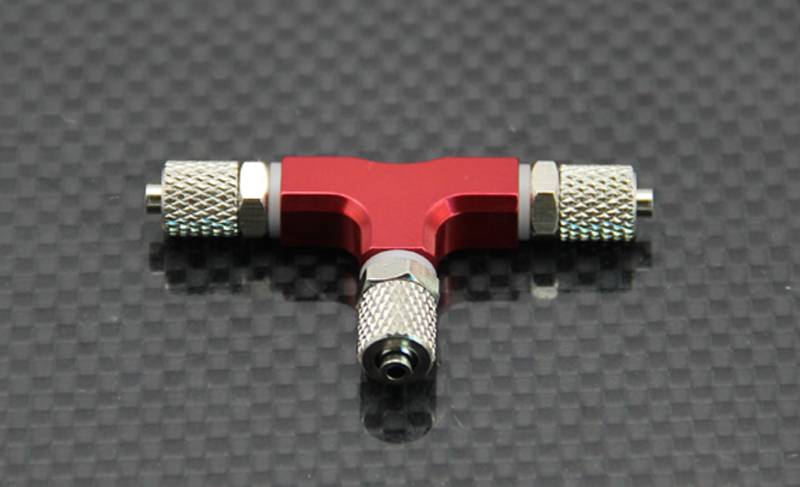

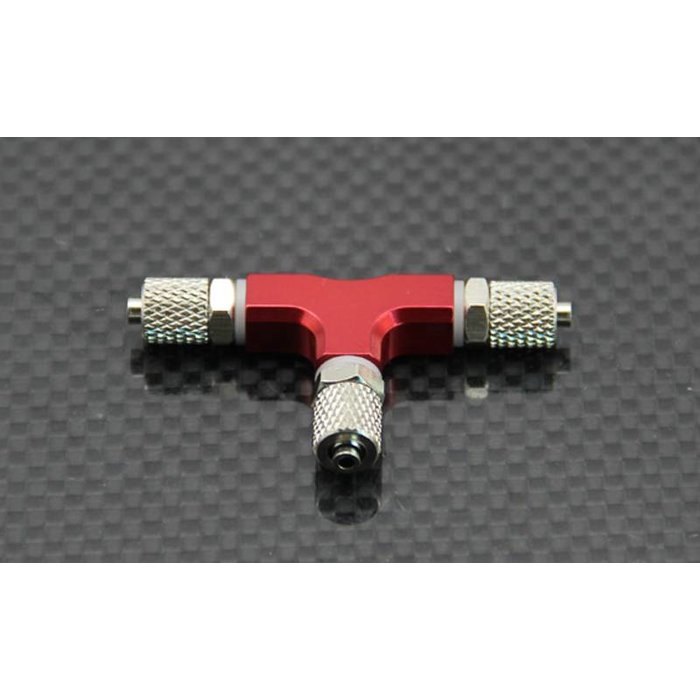

5: The entire system has seven hydraulic fittings connected together, connected to the main pump 3 through the taps, CNC custom

6: 3 of high temperature resistance, corrosion resistance tubing is the lifeline of the entire system.

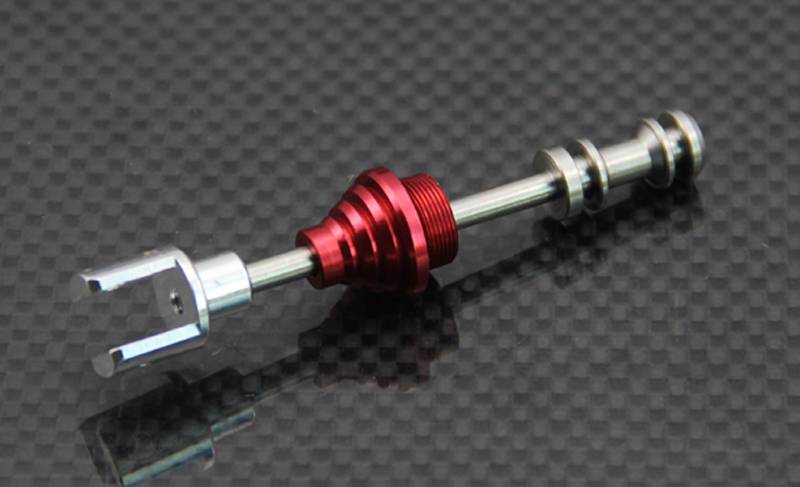

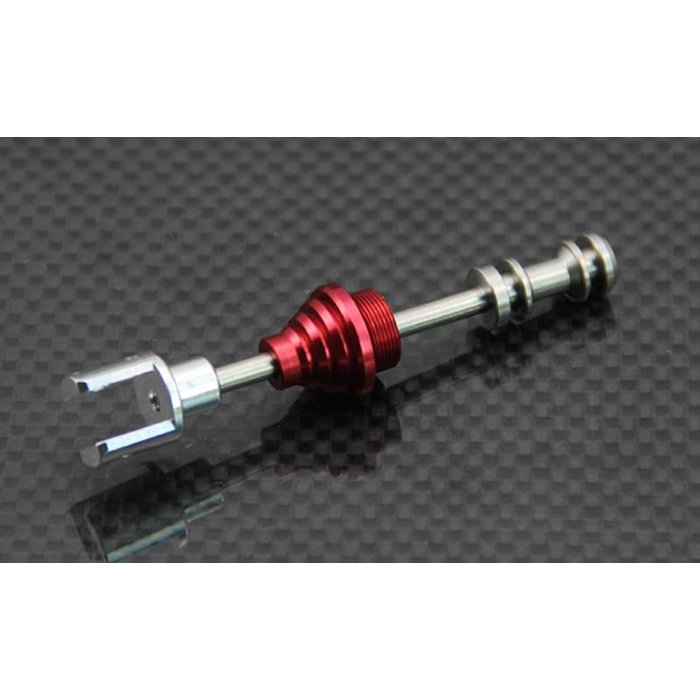

7: GTB brakes the brake master key parts are dual piston pump seal design, a combination of two seals together.

The main pump combination, cover with an empty nut design, the effective exclusion of air inside, enhanced braking force.
