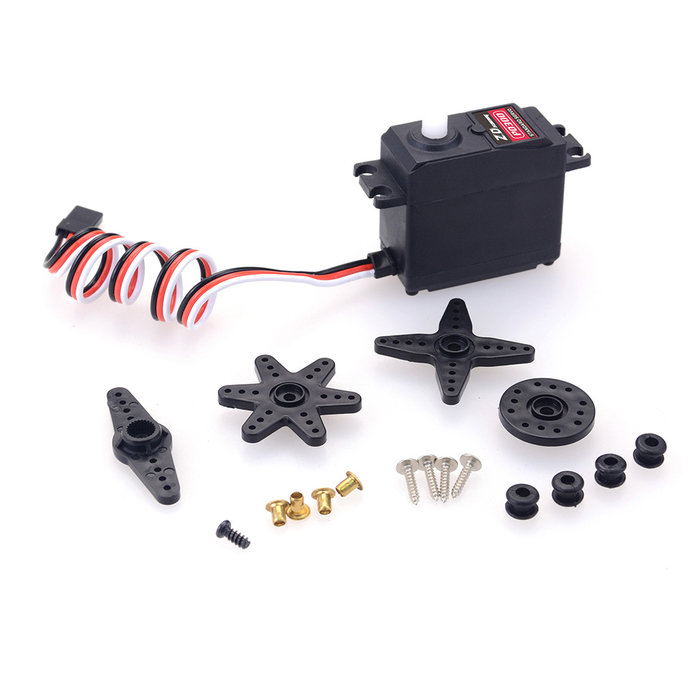

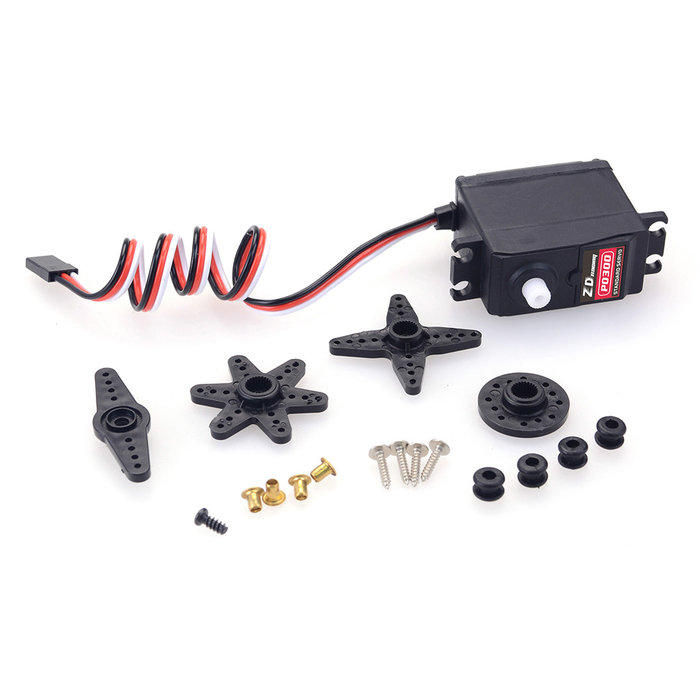

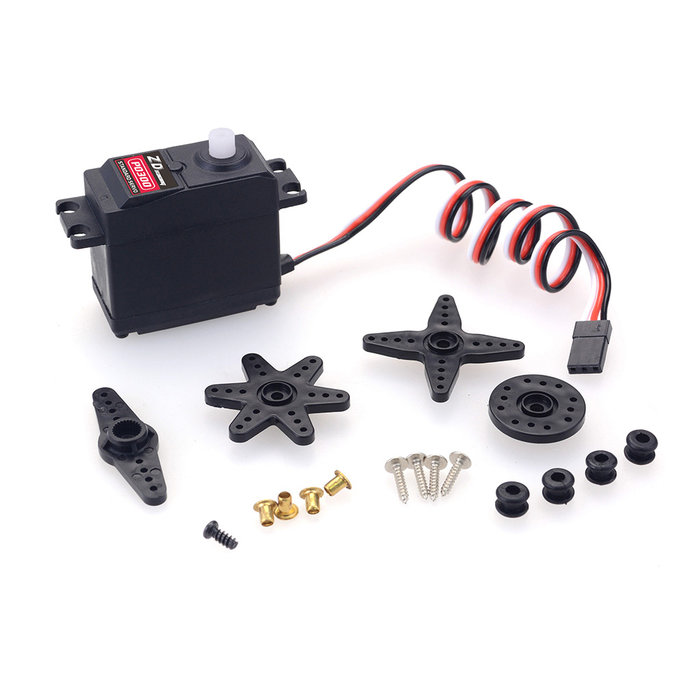

ZD Racing3.5kg Servo (voor brushed)

No.

(Item)

(Specification)

1-1

Storage Temperature Range

-20℃～60℃

1-2

Operating Temperature Range

-10℃～50℃

1-3

Operating Voltage Range

4．8V～6V

2-1

Standard Test Environment

Every test under normal temperature and humidity(temperature:25 ± 5℃, relative humidity: 65 ± 10％), and characteristics are determined under the condition of standard test.

No.

(Item)

(Specification)

3-1

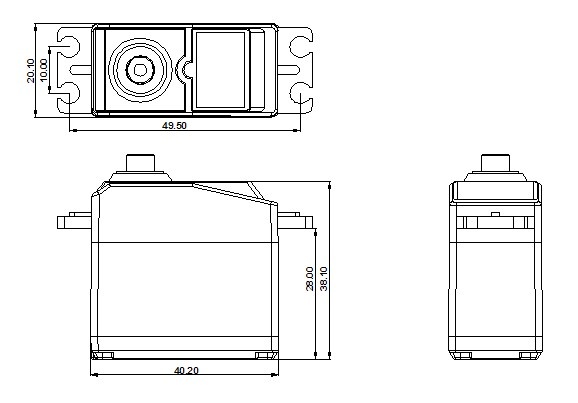

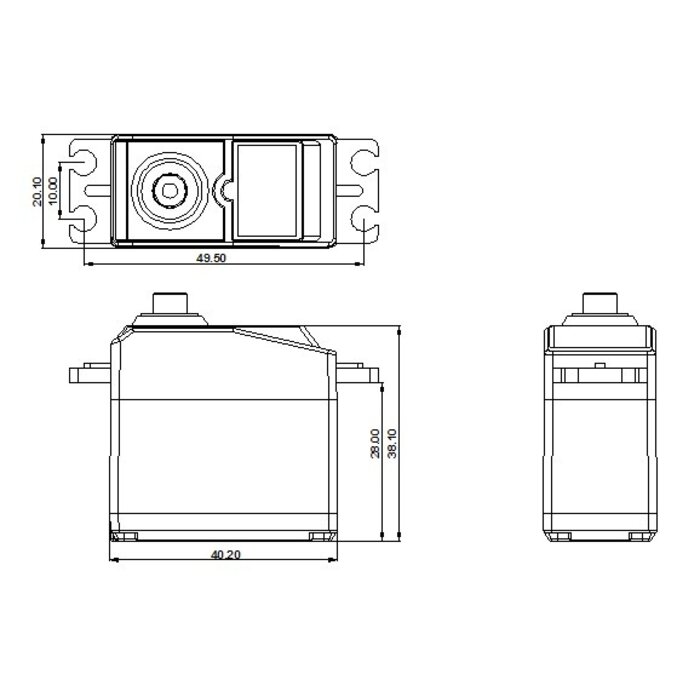

Outline Drawing

See the appendix

3-2

Appearance

No damage and mustn’t affect functions.

No.

(Item)

4.8V

6.0V

4-1

Operating speed (at no load)

0.16±0.01sec/60°

0.13±0.01sec/60°

4-2

Running current (at no load)

150±30mA

170±30mA

4-3

Stall torque (at locked)

3±0.3kg-cm

3.5±0.3kg-cm

4-4

Stall current (at locked)

1.8±0.1A

2±0.1A

4-5

Idle current (at stopped)

6±1mA

6±1mA

4-6

Running life(at no load)

>15000次

>10000次

4-7

Temperature drift(at 25°C)

≤5°

­≤7°

No.

(Item)

(Specification)

5-1

Overall Dimensions

See drawings

5-2

Limit angle

195°± 6°

5-3

Weight

39 ±1 g

5-4

Connector wire gauge

ψ1.5，60芯

5-5

Connector wire length

300 ± 5 mm（外露不含插头293mm）

5-6

Horn gear spline

25T/ψ5.9

5-7

Reduction ratio

1/275

5-8

excessive play

≤1°
